Vertical bowl elevator-tipper
TILTI bowl elevator-tippers are used to transfer the dough from the mixer bowls with removable trolley onto a worktable or a hopper assembled on SP-DVP volumetric dividers.
Transfers the dough onto a workbench or into a hopper
Prevents the dough from being handled too much
Hydraulic lifting system for maximum safety
3 anchor points on the ground for better stability
Compatible with different models of removable bowl
Small
details:
A vertical lifting of the bowl and the option of selecting a frontal or a lateral hooking, both with a right-or left-hand side tipping, allow optimum flexibility of use and minimal amount of operational space.
TILTI elevators-tippers as generally required by the industrial lines can be built, upon request, for heights of coupling up to 3100 mm, with a fully protective case and automatic tipping.

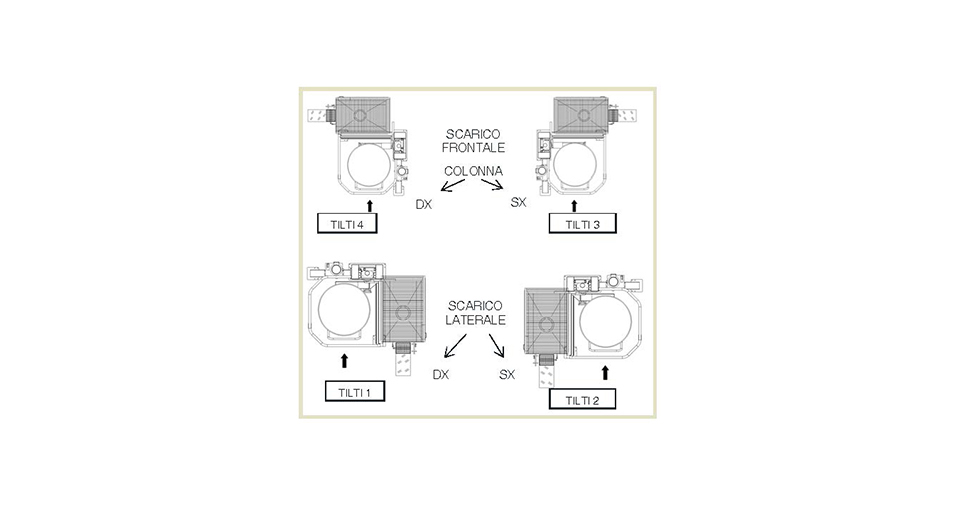

TIPPPING HIGH ONTO A HOPPER :
TILTI H-1 : Lateral tipping on the right-hand side
TILTI H-2 : Lateral tipping on the left-hand side
TILTI H-3 : Frontal tipping, left-hand column
TILTI H-4 : Frontal tipping, right-hand column
TIPPING LOW ONTO A WORKTABLE:
TILTI B-1 : Lateral tipping on the right-hand side†
†TILTI B-2 : Lateral tipping on the left-hand side†
†TILTI B-3 : Frontal tipping, left-hand column
†TILTI B-4 : Frontal tipping, right-hand column†
